HCR-01自动擦窗机器人
The HCR-01 automatic window cleaning robot is powered by a DC power adapter and can perform continuous cleaning work.

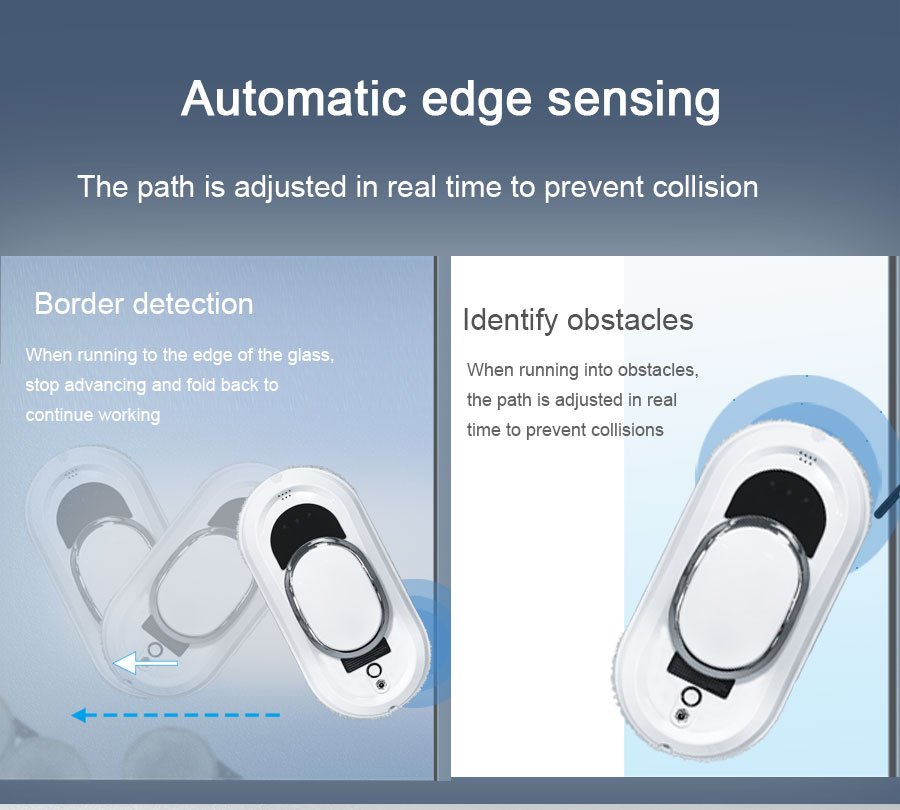

HCR-01 automatic window cleaning robot adopts microcomputer intelligent control for automatic cleaning, with multiple identification and protection functions and multiple cleaning path modes.

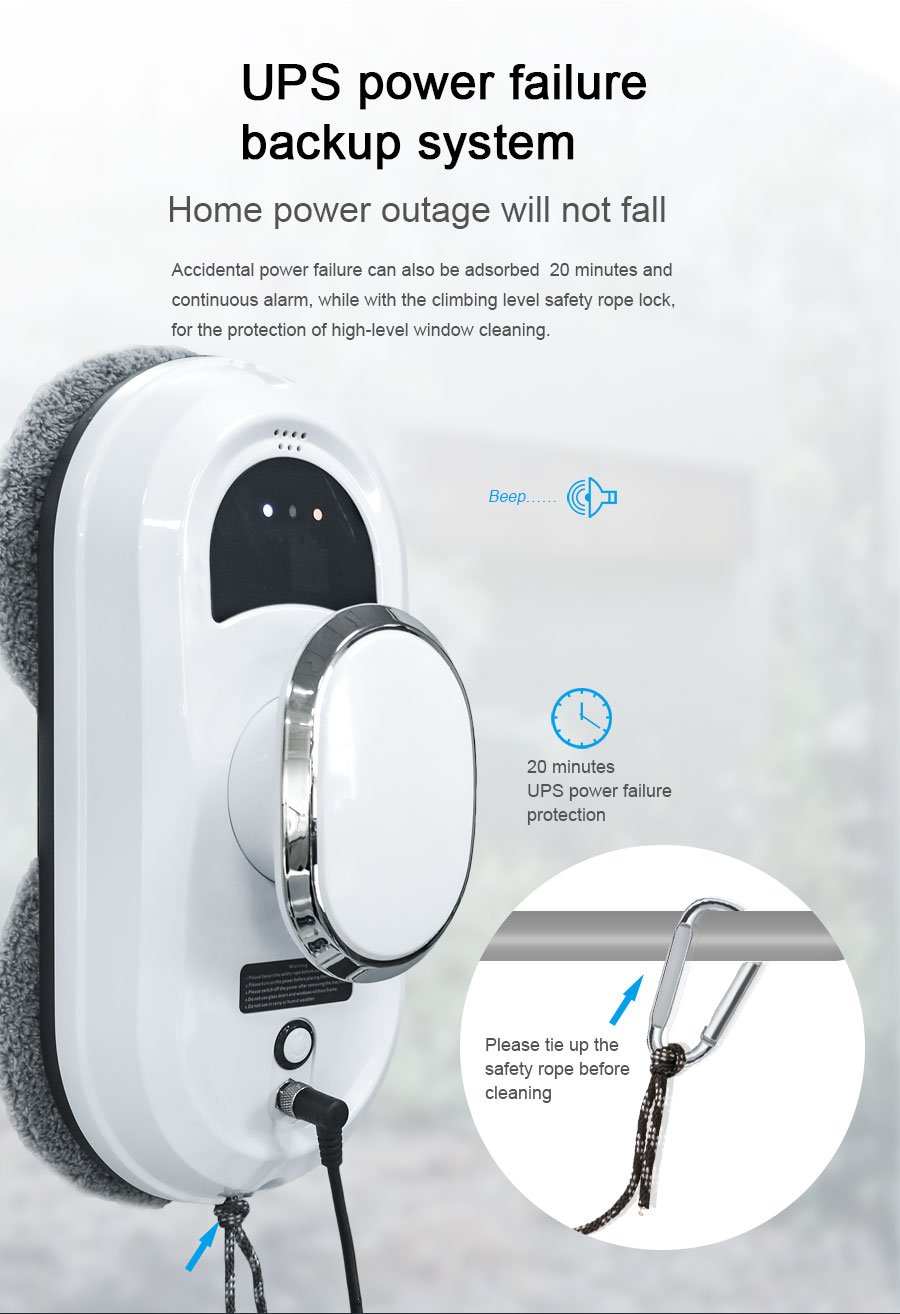

HCR-01 automatic window cleaning robot has a built-in UPS uninterruptible power supply. When the machine encounters an abnormal DC power supply, it can start the UPS power supply to ensure that the vacuum motor works normally for about 20 minutes to prevent it from falling. The machine also emits a warning sound to remind the user to take it off. .
The HCR-01 automatic window cleaning robot is equipped with a physical safety rope to protect the machine from abnormal falls.
When the HCR-01 automatic window cleaning robot detects an abnormal situation, the red light flashes and an alarm sounds.
After cleaning is completed, it will automatically stop and sound a warning sound.
●When working, the mobile power supply control input voltage is 100~240VAC 50Hz/60Hz
The battery output voltage and current is 24V/3.75A and the power consumption is 80W.
●Battery and charging: 500mAh lithium battery, charging time is about 4H~6H hours, battery life is about 20min±5min
HCR-01 automatic window cleaning robot usage environment:
Working temperature range is about: 0℃±2℃～40℃±2℃ (32℉～104℉);
Storage temperature range: -10℃±2℃～50℃±2℃ (14℉～122℉)

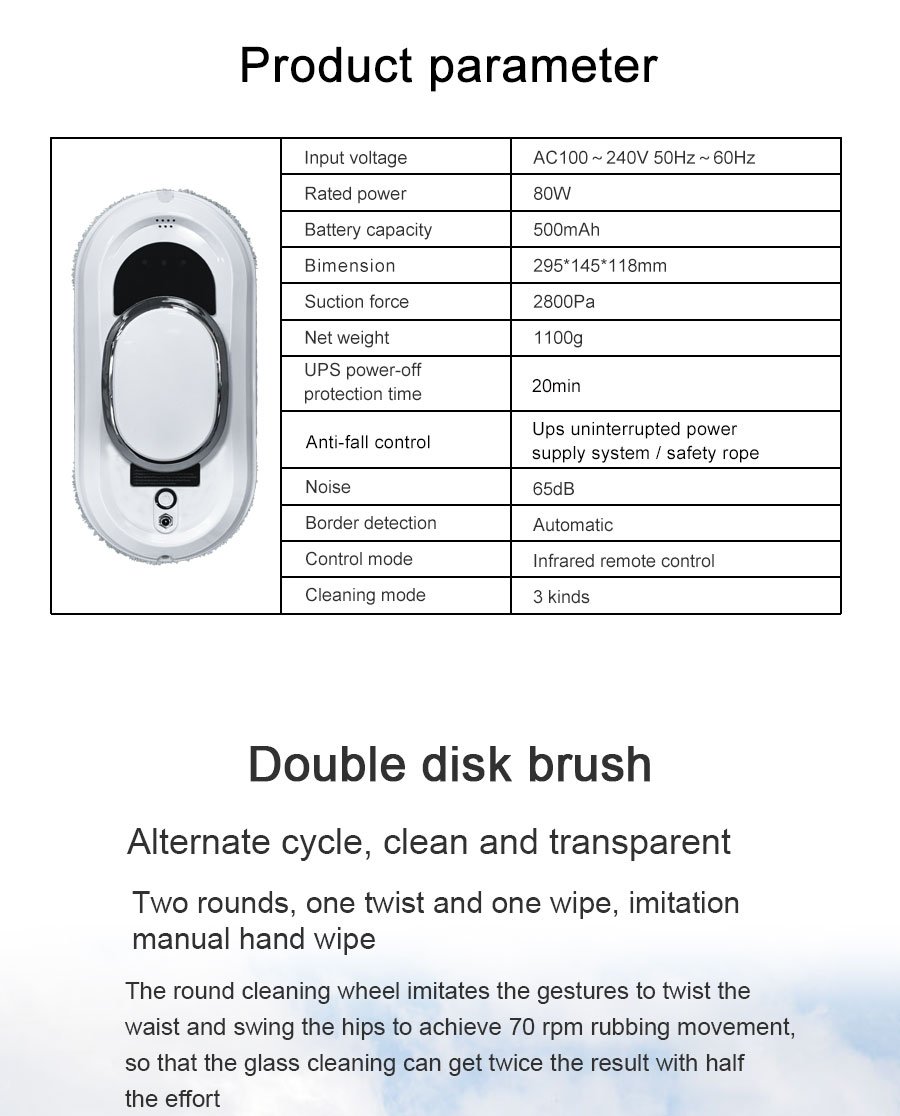

Technical specifications:

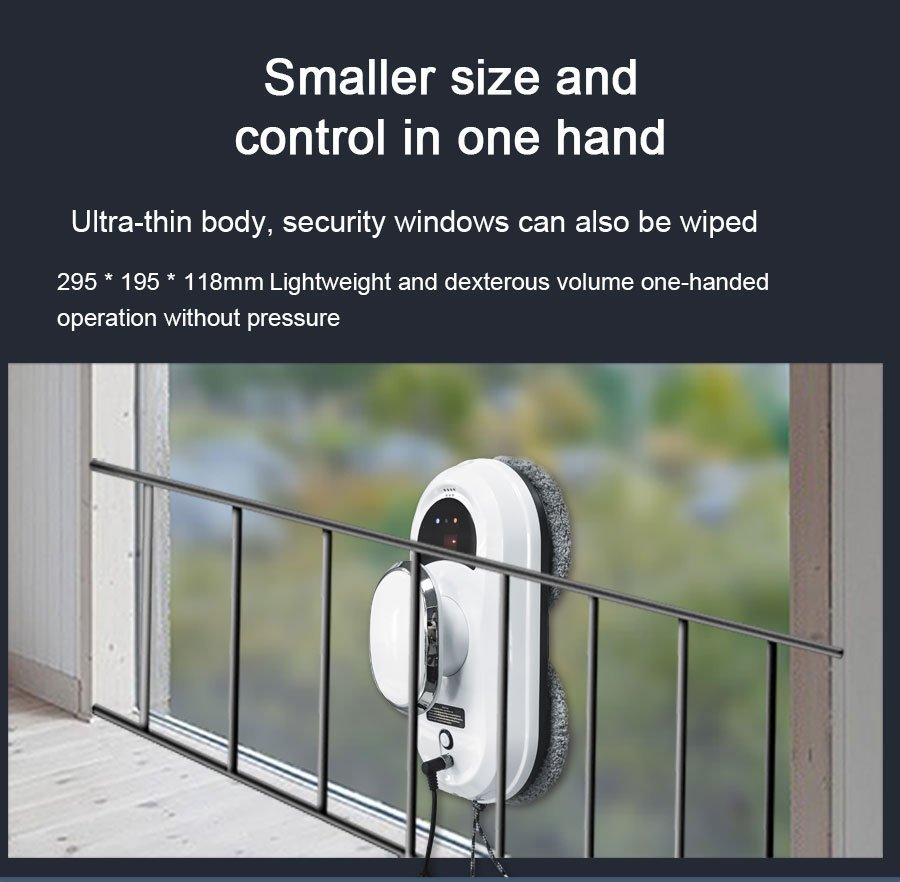

Dimensions and weight | Host size | 295mm*145mm*118mm/±1mm |
Remote control size | 138.5mm*34.5mm+17mm/±1mm | |
Host net weight | 1100±6g | |
Net weight of remote control | 110g±3g | |
Power bank weight | 775g±5g | |
total weight | 2100g±10g | |
Working characteristics

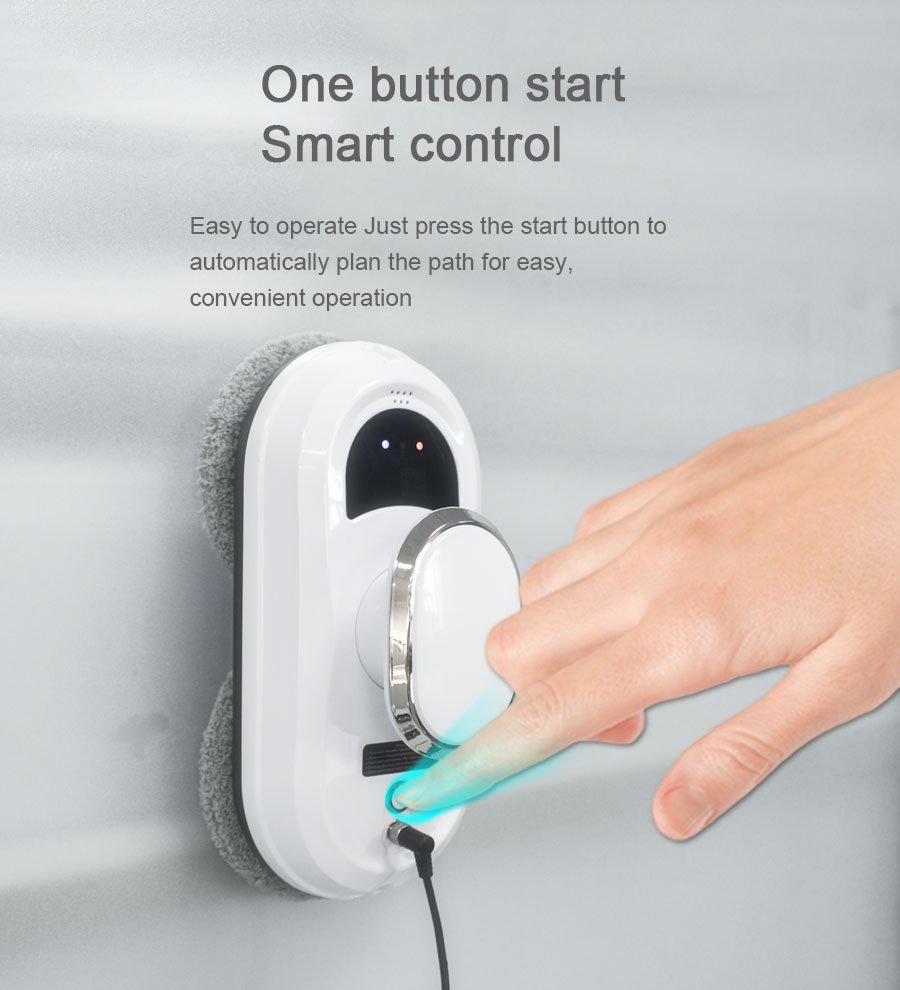

| Operating mode | Turn on the host power switch and control the host on/off with one click. |

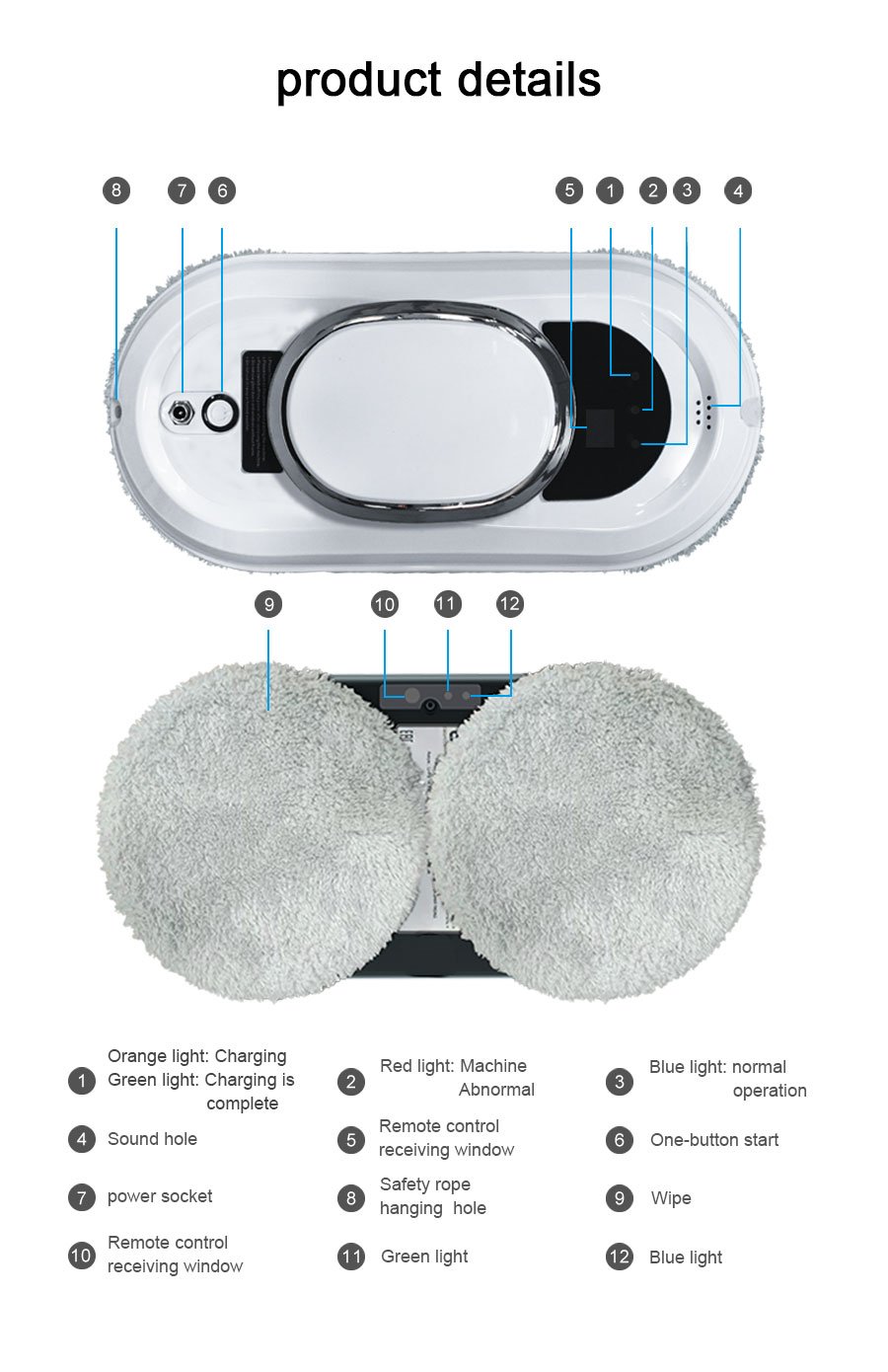

Charge | In the off state, connect the power adapter, the machine will light up in orange, and will turn on in green after charging is completed. | |
power off state | When there is a power outage or the power supply is loose, the machine is in a power-off state, the red light flashes, and the machine beeps and alarms. | |
standby mode | When the fan is running, it is attached to the glass, and the LED indicator lights up orange/blue. | |
In standby mode, short press the machine power button or press the remote control start button to start/pause the machine. Press and hold the machine's power button for 3 seconds to turn off the main power switch. | ||

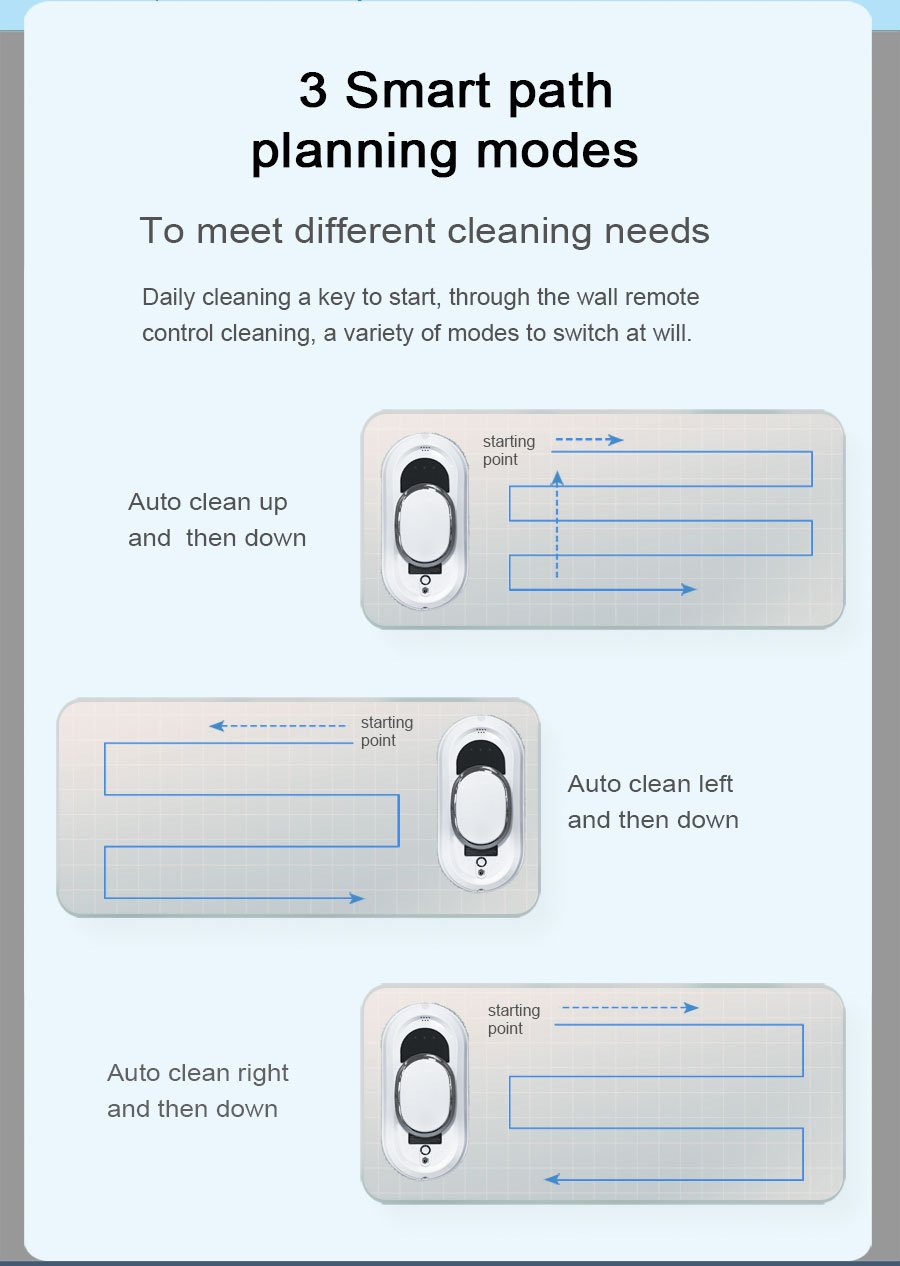

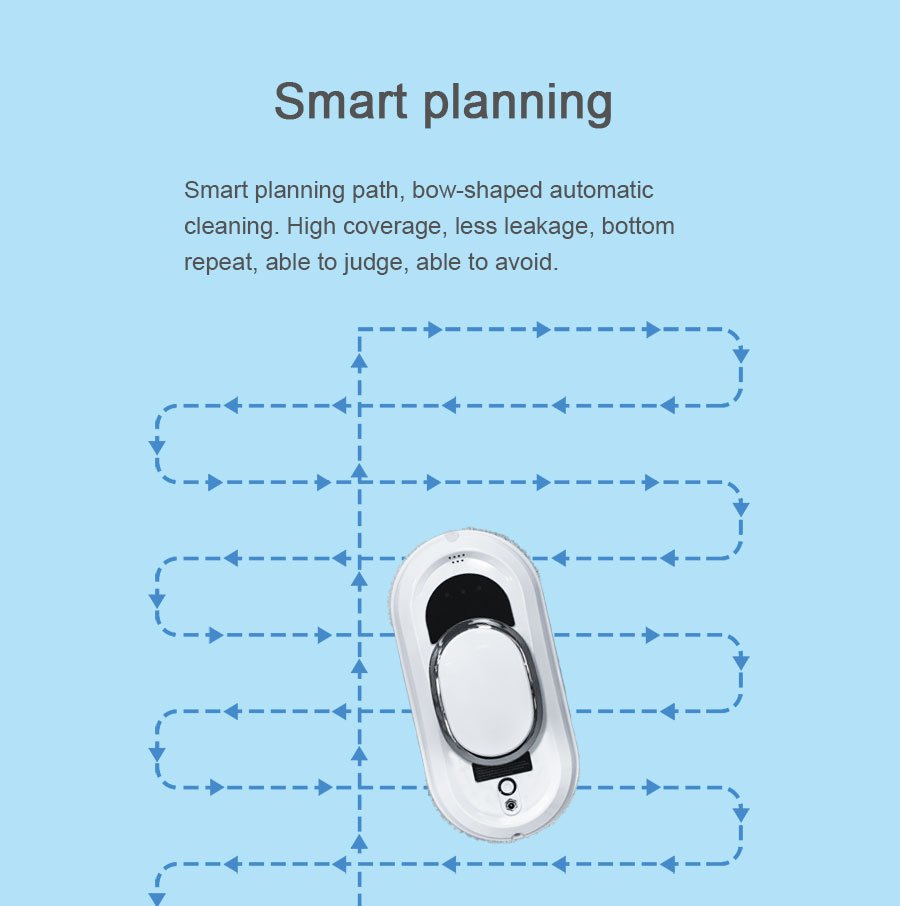

Automatic cleaning | Press the remote control to select the automatic cleaning mode. The blue light is always on when the machine is running. In the automatic cleaning mode, it will automatically stop after cleaning the entire glass. The machine will crawl from the bottom to the top, and then move from left to right, and from top to bottom. Clean, stop automatically after cleaning is completed | |

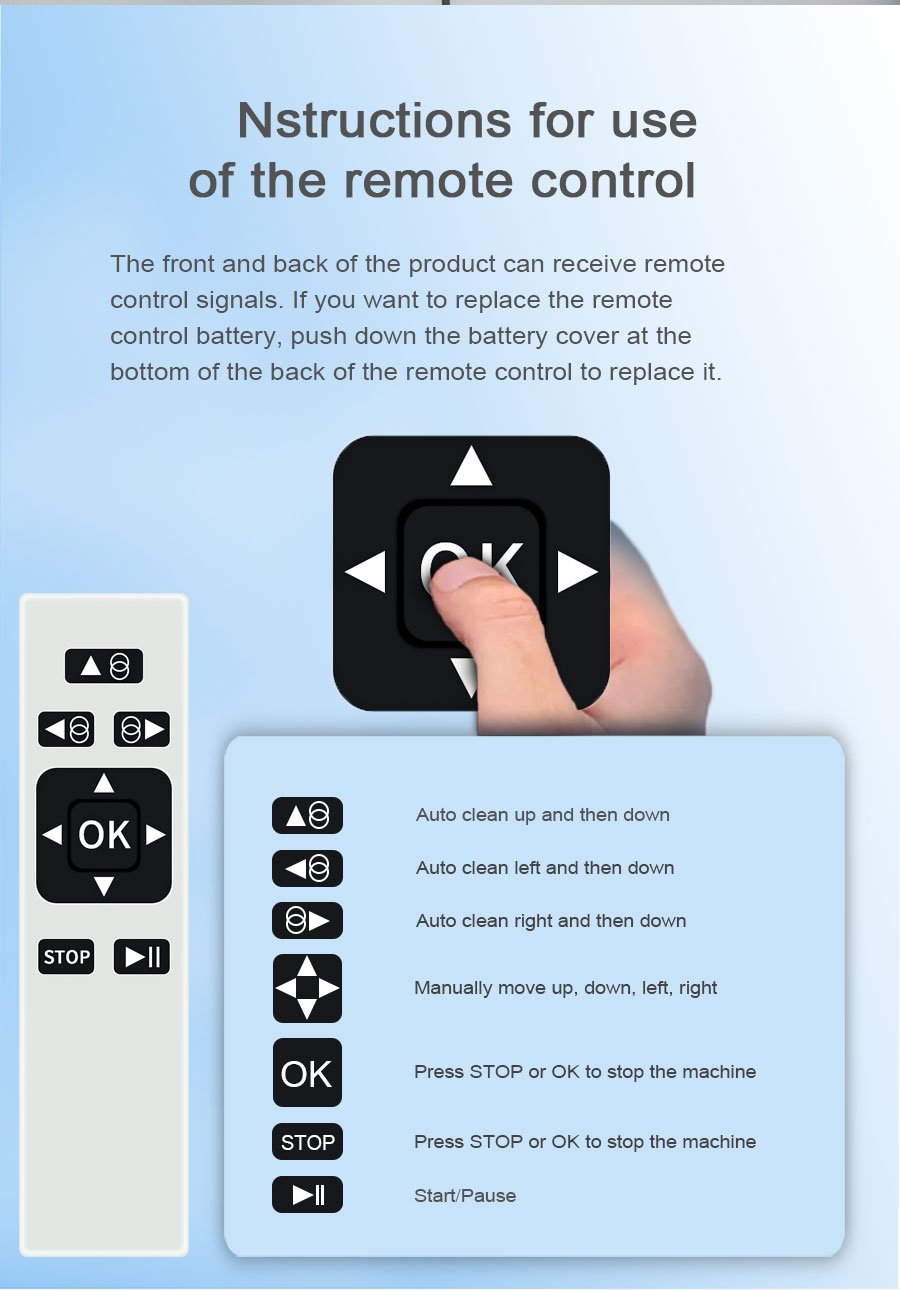

manual mode | Press the up, down, left, and right direction keys on the remote control to control the work in the corresponding direction. | |
Host operating noise | ≤65db | |
Way of working | Remote control automatic mode/manual mode | |
Cleaning speed | 4min/㎡ | |
Applicable glass size | ≥350cm*350cm | |

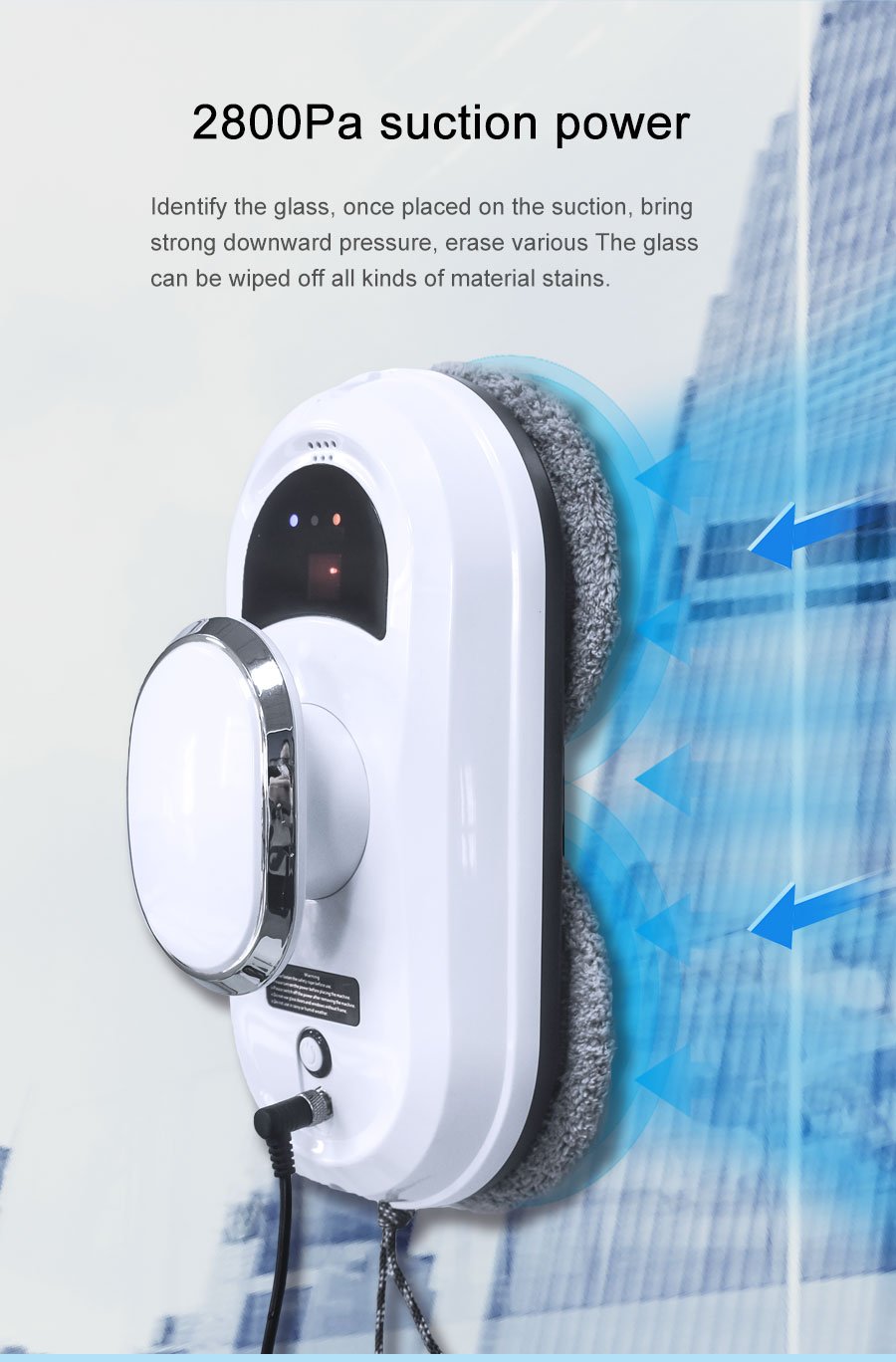

Vacuum adsorption force | 2800Pa±10% | |
Circular wipe | none | |
